产品详情

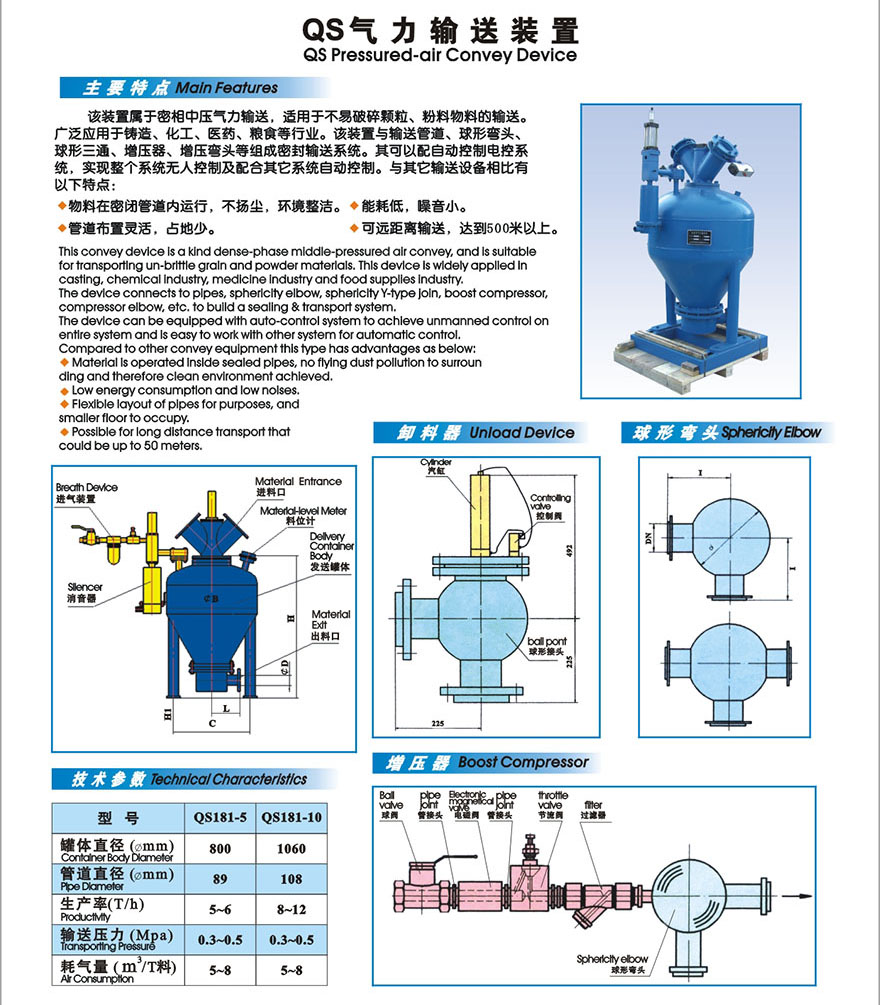

ZXQS气力输送装置(ZXQS Pneumatic conveyer)
该装置属于密相中压气力输送，实用于不易破碎颗粒、粉料物料的输送。广
泛应用于铸造、化工、医药、粮食等行业。该装置与输送管道、球形弯头、球形三通、增压器、增压弯头等组成一密闭输送系统。其可以配自动控制电控系统，实现整个系统无人控制及配合其它系统自动控制。
This equipment belongs to dense-phase pneumatic conveying, and it is practical to the conveying of some grain that is hard to break. It is widely used in foundry, chemical, medicine, and grain industries. The equipment as well as pipe laying, glob elbow, glob conductor, pressure-increased machine、pressure-increased elbow, etc, forms an airtight convey system. It can be collocated with electronic auto control system to realize auto control, (no supervision).
与其它输送设备相比有以下特点：
Compared with other equipment, its characteristics are as follows:
l 物料在密闭管道内运行，不扬尘环境整洁。
l Material working in the airtight pipe, environmental friendly.
l 能耗低，噪音小。
l Low consumption, little noise.
l 管道布置灵活，站地少。
l Collocation changeable, less impropriation.
l 可远距离输送，达到500米以上。
l Long distance convey, more than 500m.
ZXQS气力输送装置参数：(Technical references:)
型 号
(Type) |
罐体直径（φmm） |
管道直径（φmm） |
生产率（T/h） |
输送压力（Mpa） |
耗气量（m3/T料） |
|
ZXQS181-5 |
800 |
89 |
5-6 |
0.3-0.5 |
5-8 |
|
ZXQS181-10 |
1060 |
108 |
8-12 |
0.3-0.5 |
5-8 |

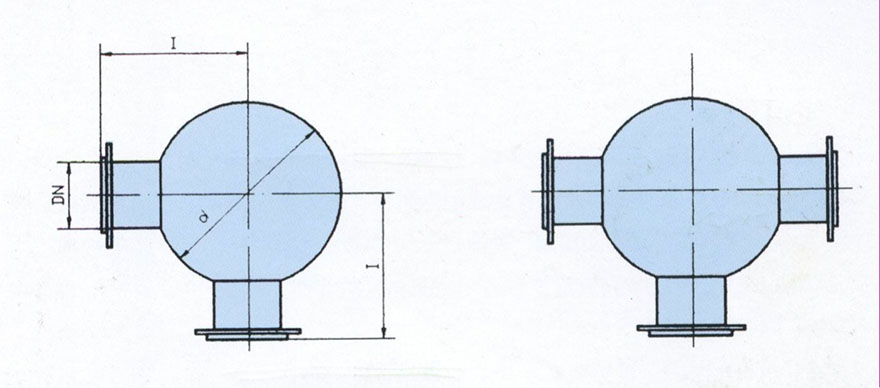

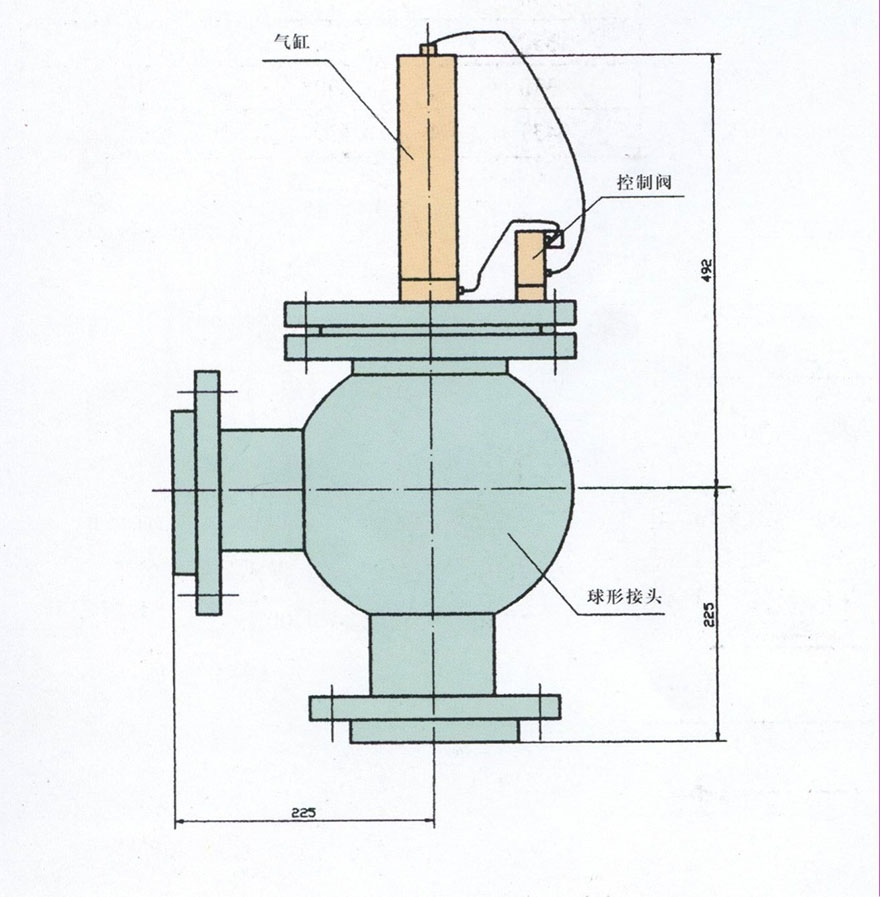

弯头 增压弯头 卸料器
