ZXZ29系列振实台(Vibrating table)
该机主要用于树脂砂和消失模等造型时，通过振动电机带动机体振动使砂充分紧实和充满铸型。可以与辊道输送机组成流水生产线。其台面与机座采用空气弹簧连接，工作时噪音低，减振效果好.具有较好的工艺性和环保性。
It is mainly used in resin-boned sand and film; the vibrating engine will make the sand jolt compaction. Together with pipe conveyor, they can make up a production line. The air spring links the table and the base. While working, it makes little noise, and it is better to decrease vibrating, enjoying techniques & environment-friendly.
ZXZ29系列振实台参数(Technical References of Vibrating table )：
|
型 号 |
工作台面（m m） |
电机功率（Kw） |
有效载货(T) |
空气压力
(MPa) |
|
ZXZ290 |
700×400 |
2×0.25 |
0.5 |
0.3~0.6 |
|
ZXZ291 |
900×600 |
2×0.4 |
1 |
0.3~0.6 |
|
ZXZ292 |
1250×960 |
2×0.75 |
2 |
0.3~0.6 |
|
ZXZ293 |
1400×1250 |
2×1.5 |
3 |
0.3~0.6 |
|
ZXZ294 |
1600×1250 |
2×2.2 |
4 |
0.3~0.6 |

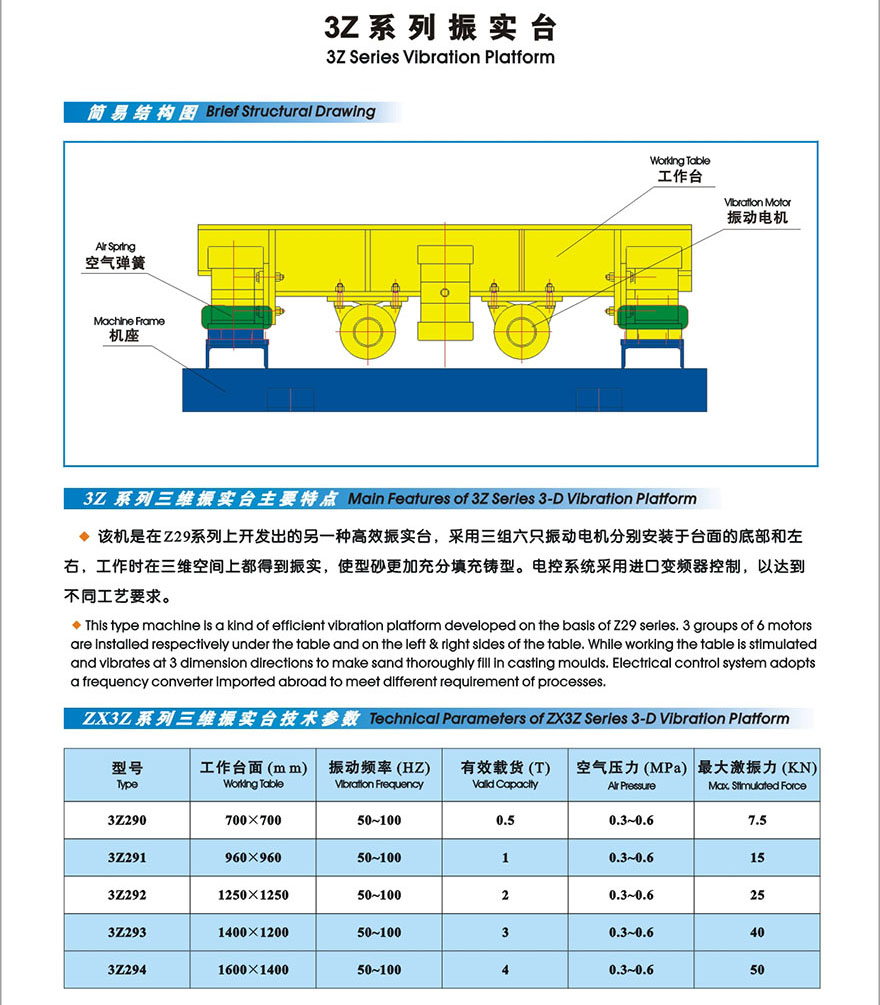

ZX3Z系列三维振实台(Three-dimensional Vibrating Table)
其是在ZXZ29系列上开发出的另一种高效振实台，采用三组六只振动电机分别安装于台面的底部和左右，工作时在三维空间上都得到振实，使型砂更充分填充铸型。电控系统采用进口变频器控制，以达到不同工艺要求。
Three-dimensional Vibrating Table is a kind of high-efficient vibrating table upgraded upon zxz29. It contains six vibrating engines respectively located at the base of the table, while it works; it vibrates the table in three-dimensional space, and makes the sand jolt compaction. Imported electrical control system will satisfy deferent requirements.
ZX3Z系列三维振实台参数
(Technical References of Three-dimensional Vibrating Table)：
型 号
(Type) |
工作台面
（m m） |
振动频率（HZ） |
有效载货(T) |
空气压力(MPa) |
*大激振力（KN） |
|
ZX3Z290 |
700×700 |
50-100 |
0.5 |
0.3~0.6 |
7.5 |
|
ZX3Z291 |
960×960 |
50 |
1 |
0.3~.6 |
15 |
|
ZX3Z292 |
1250×1250 |
50 |
2 |
0.3~0.6 |
25 |
|
ZX3Z293 |
1400×1200 |
50 |
3 |
0.3~0.6 |
40 |
|
ZX3Z294 |
1600×1400 |
50-100 |
4 |
0.3~0.6 |
50 |
